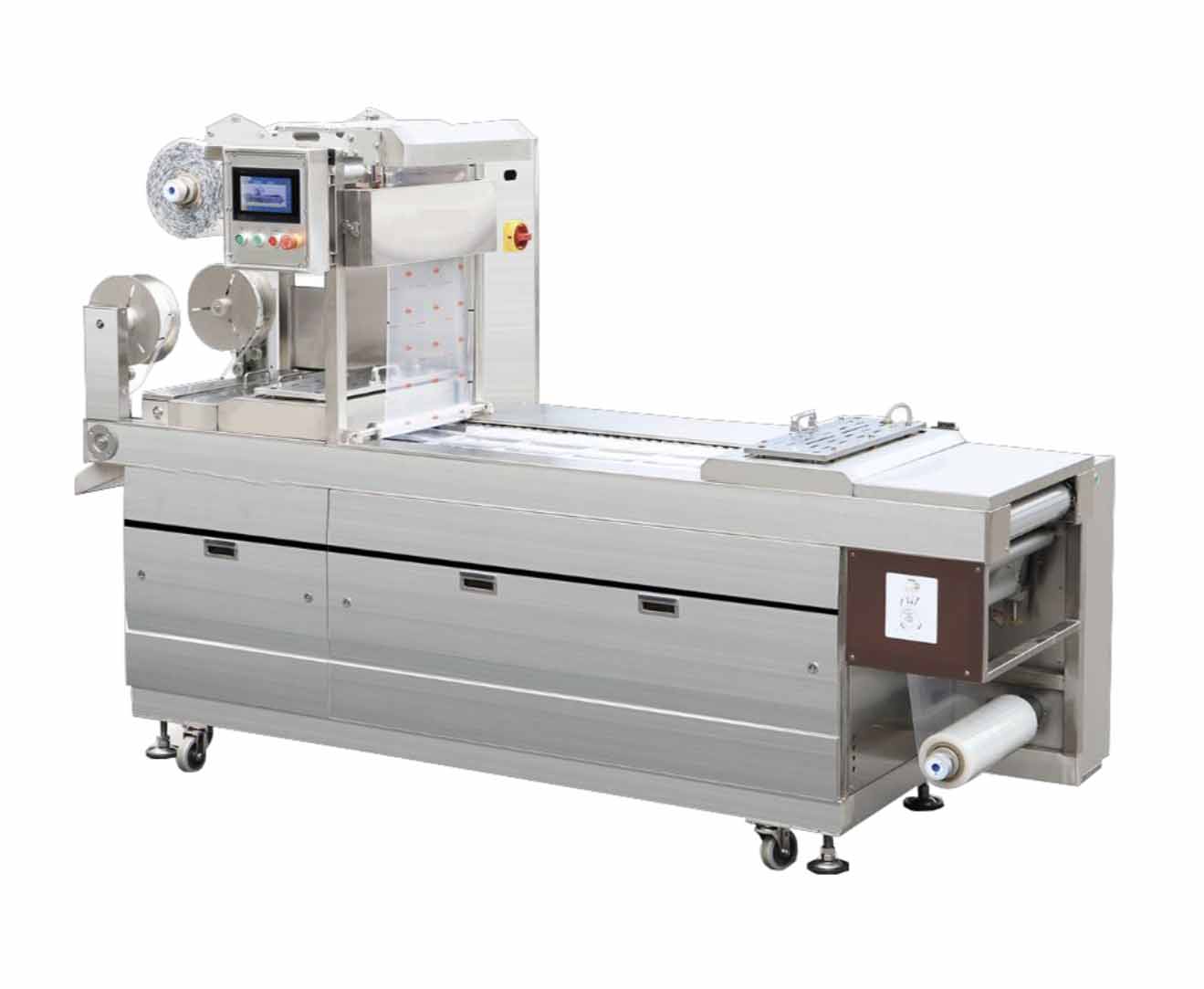

Vacuum Forming & Thermoforming Machine
Machine Overview
The Vacuum Forming & Thermoforming Machine is an advanced plastic processing system used to shape heated plastic sheets into specific forms using vacuum pressure or controlled forming techniques. The plastic sheet is heated until soft, then formed over a mold and cooled to retain the desired shape.
This machine is widely used in packaging, food container manufacturing, automotive components, electronics housings, and industrial product design. With modern control systems and precision forming technology, it ensures high production efficiency, uniform thickness, and excellent product quality.
Machine Types
- Manual Vacuum Forming Machine
- Semi-Automatic Thermoforming Machine
- Fully Automatic Thermoforming Line
- Single Station Thermoforming Machine
- Multi-Station Thermoforming Machine
Key Features
- High-speed forming process
- Uniform sheet heating system
- Accurate mold forming with vacuum pressure
- Energy-efficient operation
- PLC control with touchscreen interface
- Stable and durable machine structure
- Easy operation and maintenance
Technical Specifications
- Forming Area: 500 × 500 mm to 1500 × 1000 mm
- Sheet Thickness: 0.2 – 5 mm
- Material Compatibility: PVC, PET, PP, PS, ABS
- Heating System: Electric / Infrared heaters
- Cycle Time: 3 – 10 seconds
- Power Supply: 380V / 3 Phase
- Control System: PLC / Digital Control
(Specifications may vary depending on model.)
Applications

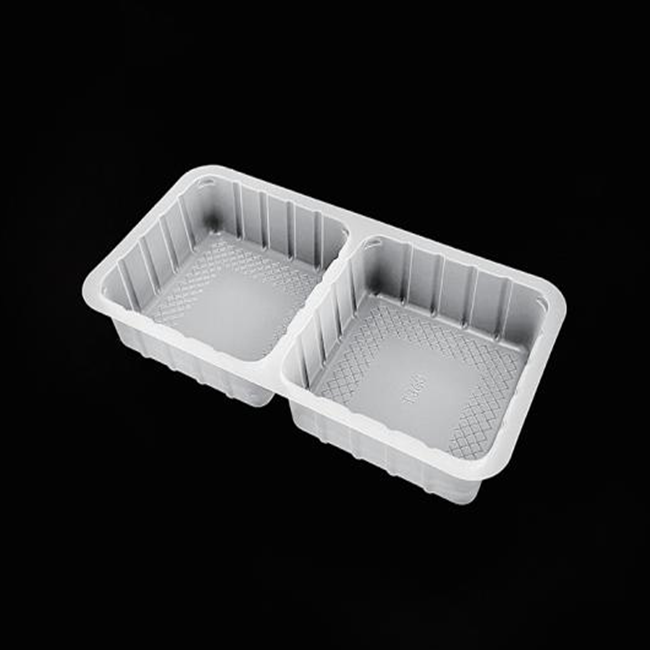

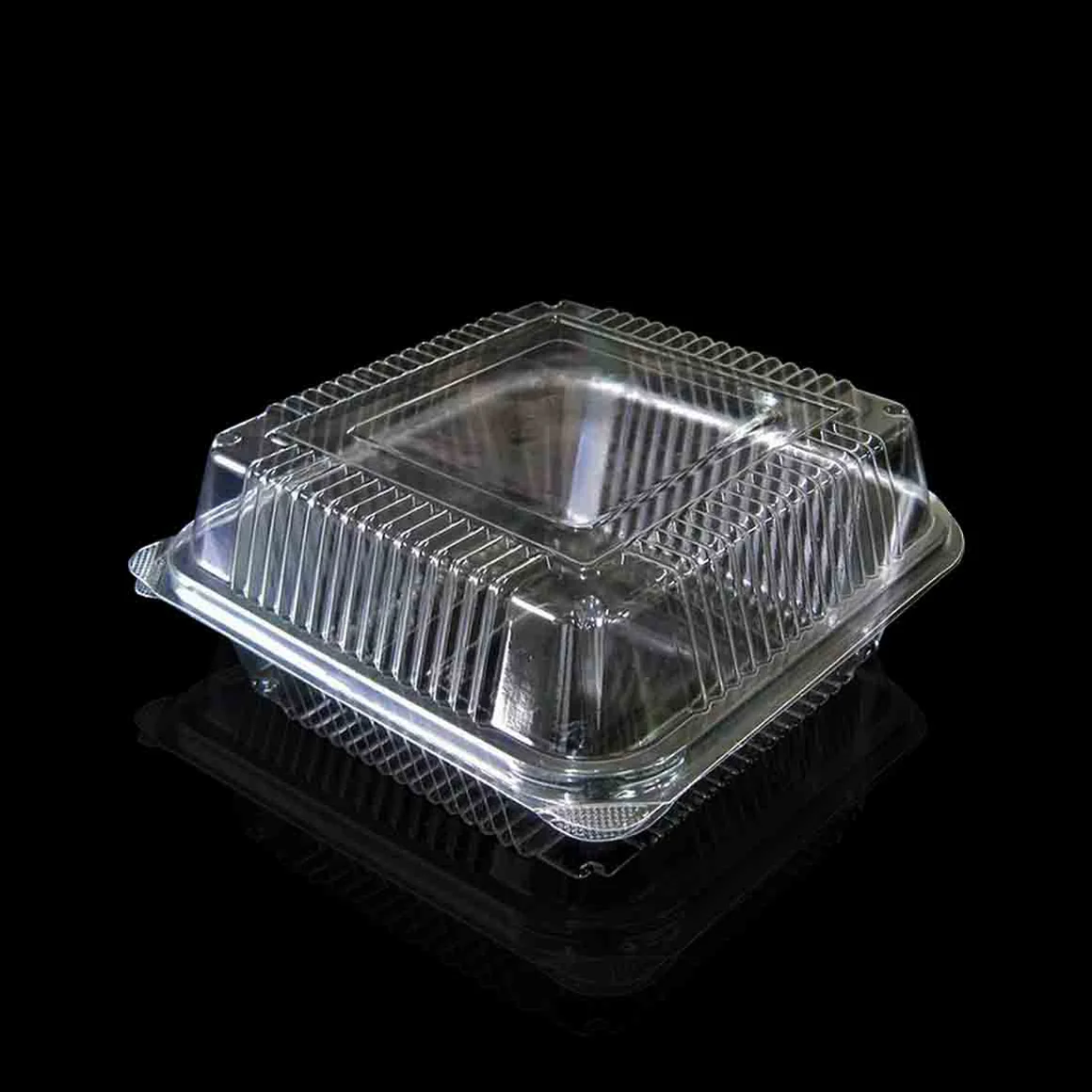

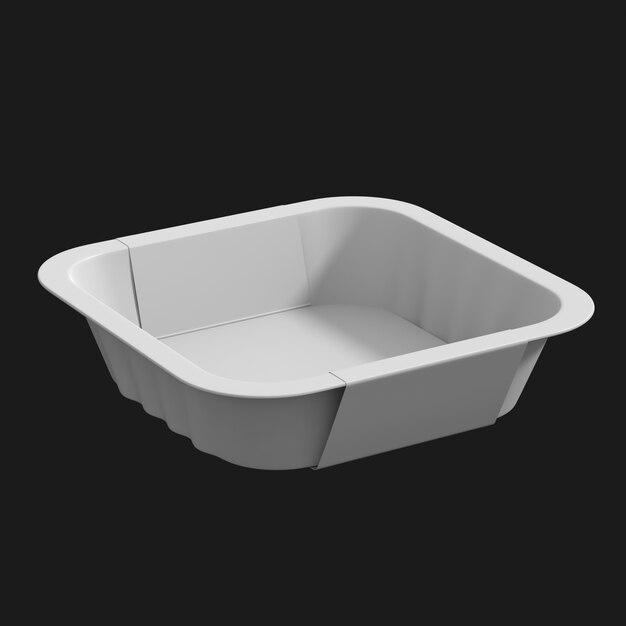

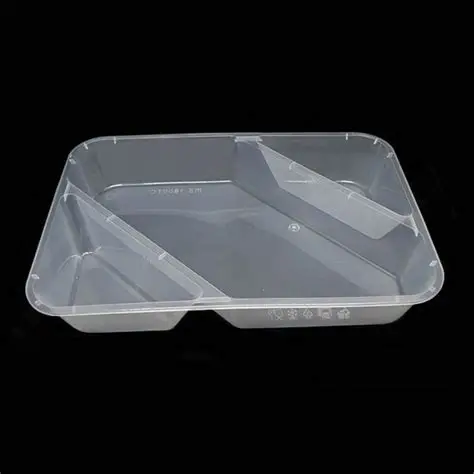

- Food packaging trays and containers
- Blister packaging
- Disposable cups and plates
- Automotive interior parts
- Electronic product housings
- Industrial packaging solutions
Advantages
- High production efficiency
- Excellent product consistency
- Low material wastage
- Suitable for various plastic materials
- Cost-effective production method
- Strong and durable machine design
Machine Components
- Heating system
- Forming station (vacuum system)
- Mold and clamping system
- Cooling system
- Sheet feeding system
- Control panel (PLC/Digital)
Optional Add-Ons
- Automatic sheet feeder
- Trimming and cutting station
- Stacking system
- Air pressure forming system
- Mold temperature control system
Safety Features
- Overheat protection system
- Motor overload protection
- Emergency stop system
- Stable electrical control system
- Safety guards and interlock system
