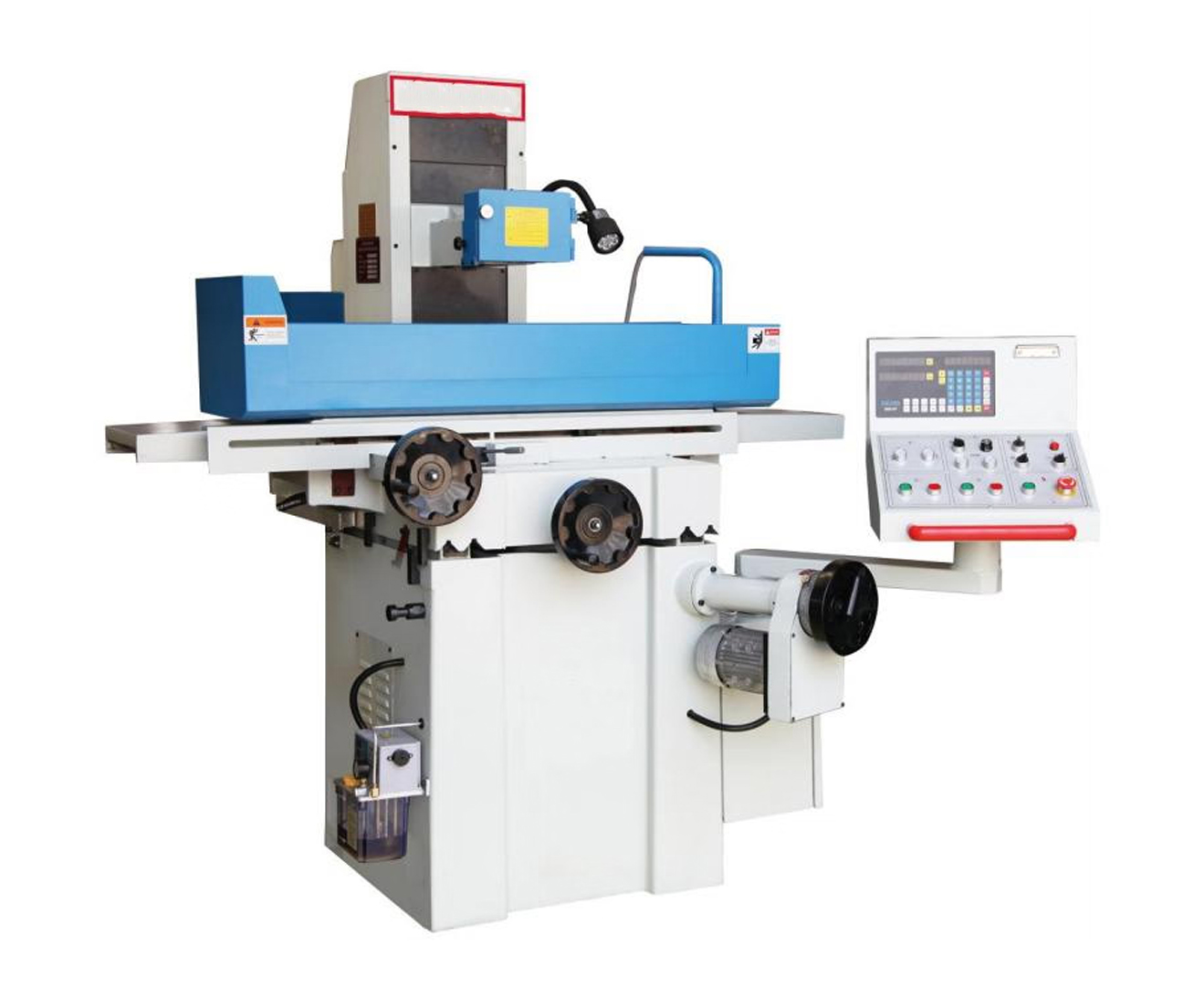

Surface Grinder Machine
Machine Overview

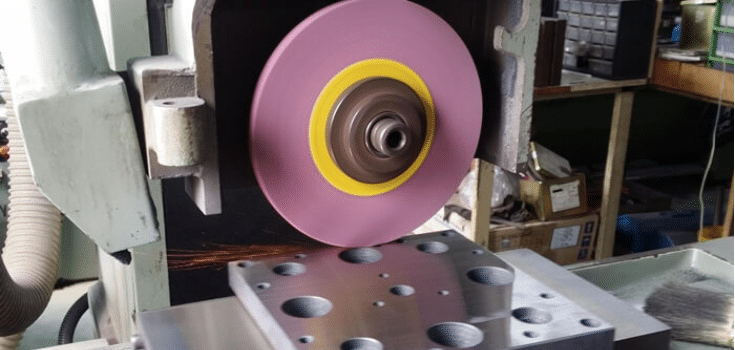

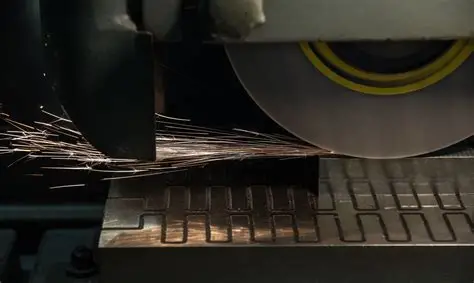

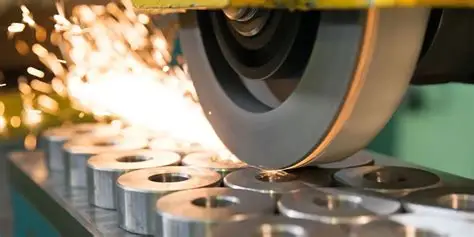

The Surface Grinder Machine is a high-precision finishing system designed to produce smooth and flat surfaces on metal components. It uses a rotating abrasive grinding wheel to remove small amounts of material, achieving tight tolerances and superior surface finish.
Surface grinding is widely used in tool rooms, mold manufacturing, automotive industries, precision engineering workshops, and heavy fabrication units. The machine ensures high dimensional accuracy, stable performance, and long service life with its rigid construction and advanced control systems.
Machine Types
Manual Surface Grinder – Ideal for tool rooms and small workshops

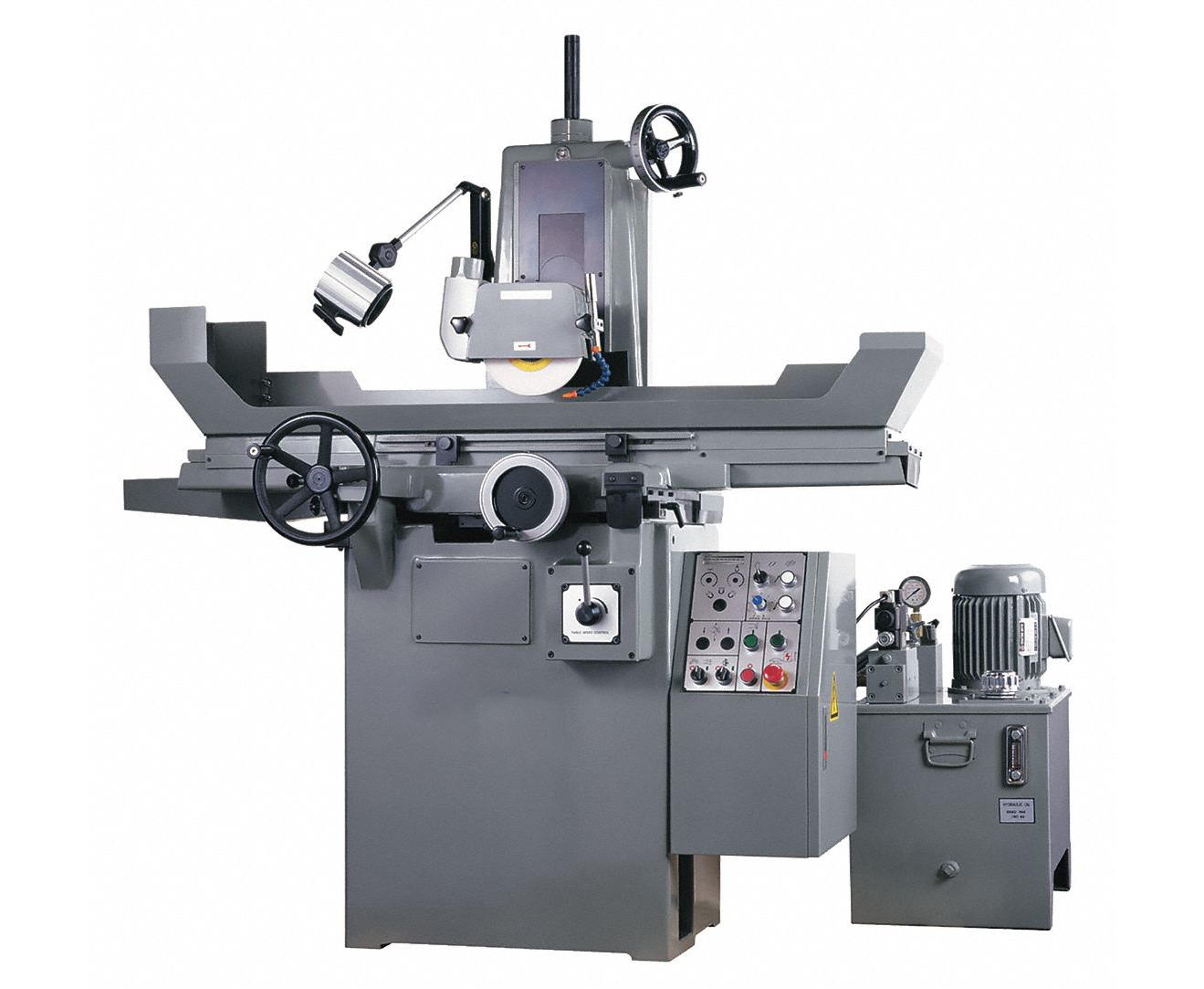

Hydraulic Surface Grinder – Smooth automatic table movement
CNC Surface Grinder – High-precision automated grinding
Column Type Surface Grinder – Suitable for heavy and large workpieces
Key Features
High precision and fine surface finishing
Heavy-duty cast iron machine body
Smooth and stable table movement
High-speed grinding spindle
Low vibration and noise operation
Easy control and maintenance
Long service life
Technical Specifications
Table Size: 200 × 500 mm to 400 × 1000 mm (customizable)
Max Grinding Length: 500 – 1000 mm
Max Grinding Width: 200 – 400 mm
Spindle Speed: 2800 RPM
Grinding Wheel Size: 200 × 20 × 31.75 mm
Surface Finish: Ra 0.2 – 0.8 µm
Power Supply: 380V / 3 Phase
(Specifications may vary depending on model.)
Applications
Tool and die making
Mold manufacturing
Automotive parts finishing
Precision machine components
Engineering and fabrication industries
Maintenance workshops
Advantages
High dimensional accuracy
Excellent surface finish
Strong and durable construction
Stable grinding performance
Suitable for hardened materials
Low maintenance cost
Machine Components
Machine base and column
Magnetic chuck table
Grinding wheel and spindle assembly
Hydraulic or manual table drive
Electrical control panel
Coolant system
Optional Add-Ons
Digital Readout (DRO) system
Automatic lubrication system
Coolant filtration unit
CNC control upgrade
Precision magnetic chuck
Safety Features
Overheat protection system
Motor overload protection
Emergency stop system
Stable electrical control system
Wheel guard safety cover
