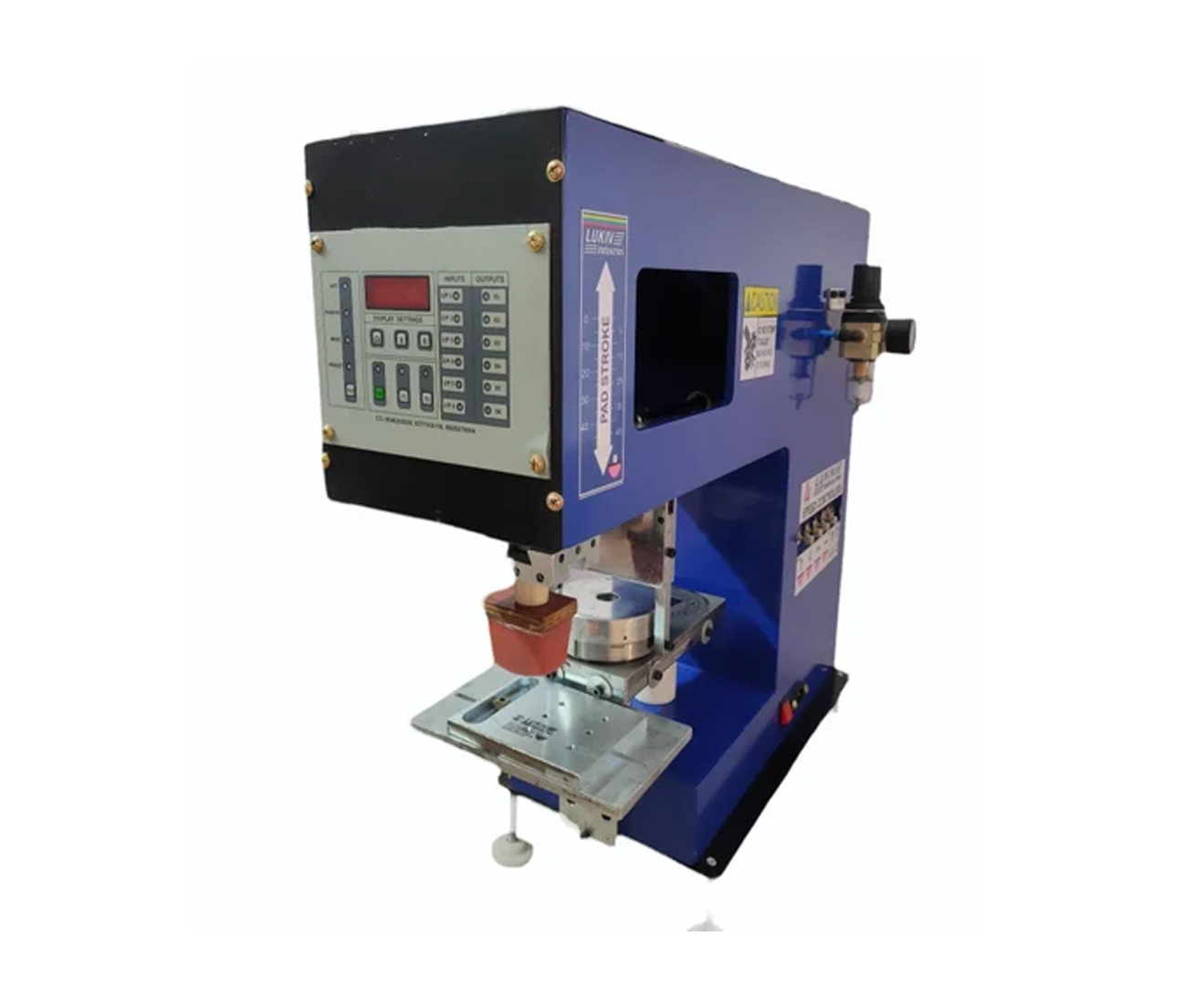

Pad Printing Machine
Machine Overview

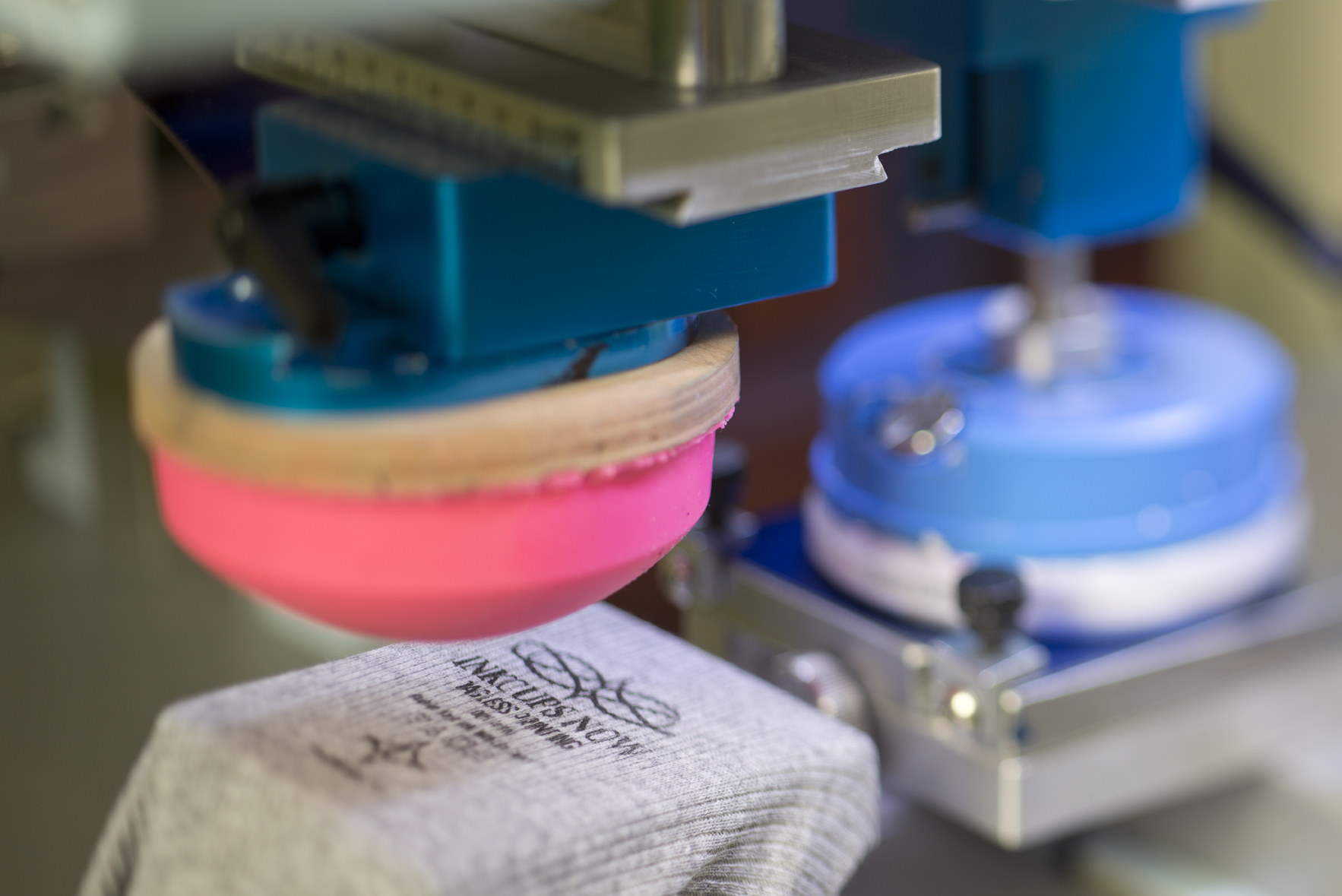

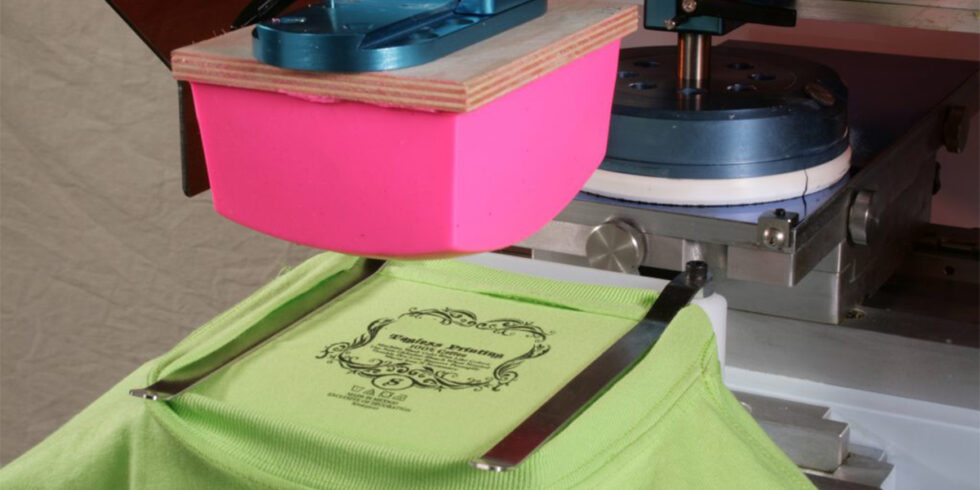

The Pad Printing Machine is a specialized printing system designed to transfer ink onto irregular, curved, or uneven surfaces using a silicone pad. This unique printing method allows precise and high-quality printing on materials that are difficult to print using conventional techniques.
Pad printing machines are widely used in industries such as electronics, automotive, medical devices, promotional products, and plastic manufacturing. With advanced control systems and precise ink transfer technology, the machine ensures sharp image quality, consistent printing, and reliable performance.
Machine Types
- Single Color Pad Printing Machine
- Multi-Color Pad Printing Machine
- Pneumatic Pad Printing Machine
- Electric Pad Printing Machine
- Fully Automatic Pad Printing Machine
Key Features
- High-precision printing on complex surfaces
- Suitable for curved and irregular shapes
- Compact and space-saving design
- Easy ink adjustment and control
- Stable and consistent printing quality
- Fast setup and operation
- Low maintenance requirements
Technical Specifications
- Printing Area: 50 × 50 mm to 200 × 200 mm
- Printing Speed: 1000 – 3000 cycles/hour
- Ink Type: Solvent-based / UV inks
- Air Pressure: 4 – 6 Bar (for pneumatic models)
- Control System: Pneumatic / Electric / PLC
- Power Supply: 220V / 110V
(Specifications may vary depending on model.)
Applications
- Printing on plastic parts and components
- Electronics and circuit components
- Automotive parts and accessories
- Medical equipment printing
- Promotional items (pens, mugs, keychains)
- Industrial product marking
Advantages
- Ability to print on complex shapes
- High precision and fine detail printing
- Cost-effective for small and medium production
- Quick setup and easy operation
- Consistent and repeatable results
- Suitable for multiple materials
Machine Components

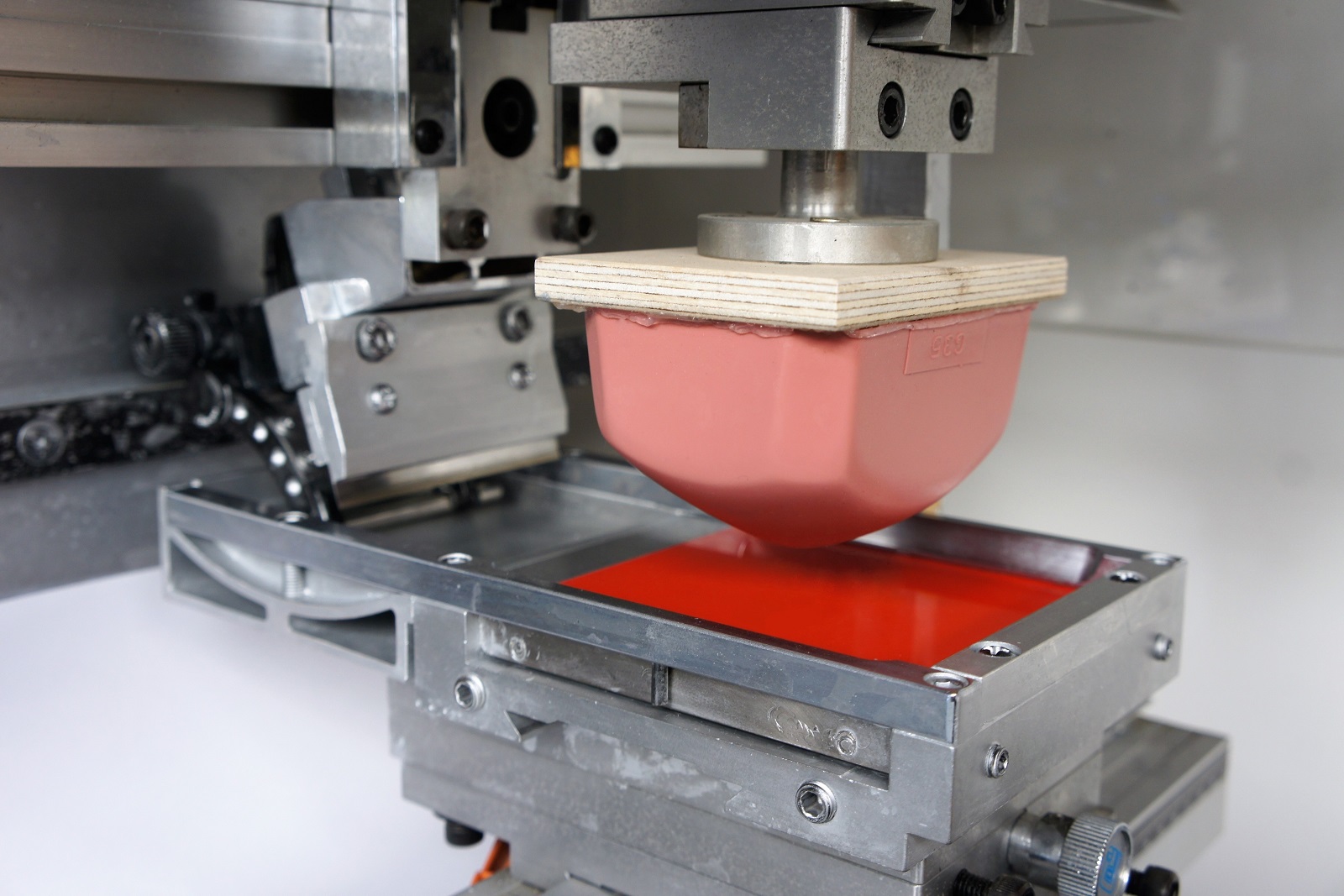

- Silicone pad
- Ink cup system
- Printing plate (cliché)
- Worktable and fixture
- Control system
- Pneumatic or electric drive system
Optional Add-Ons

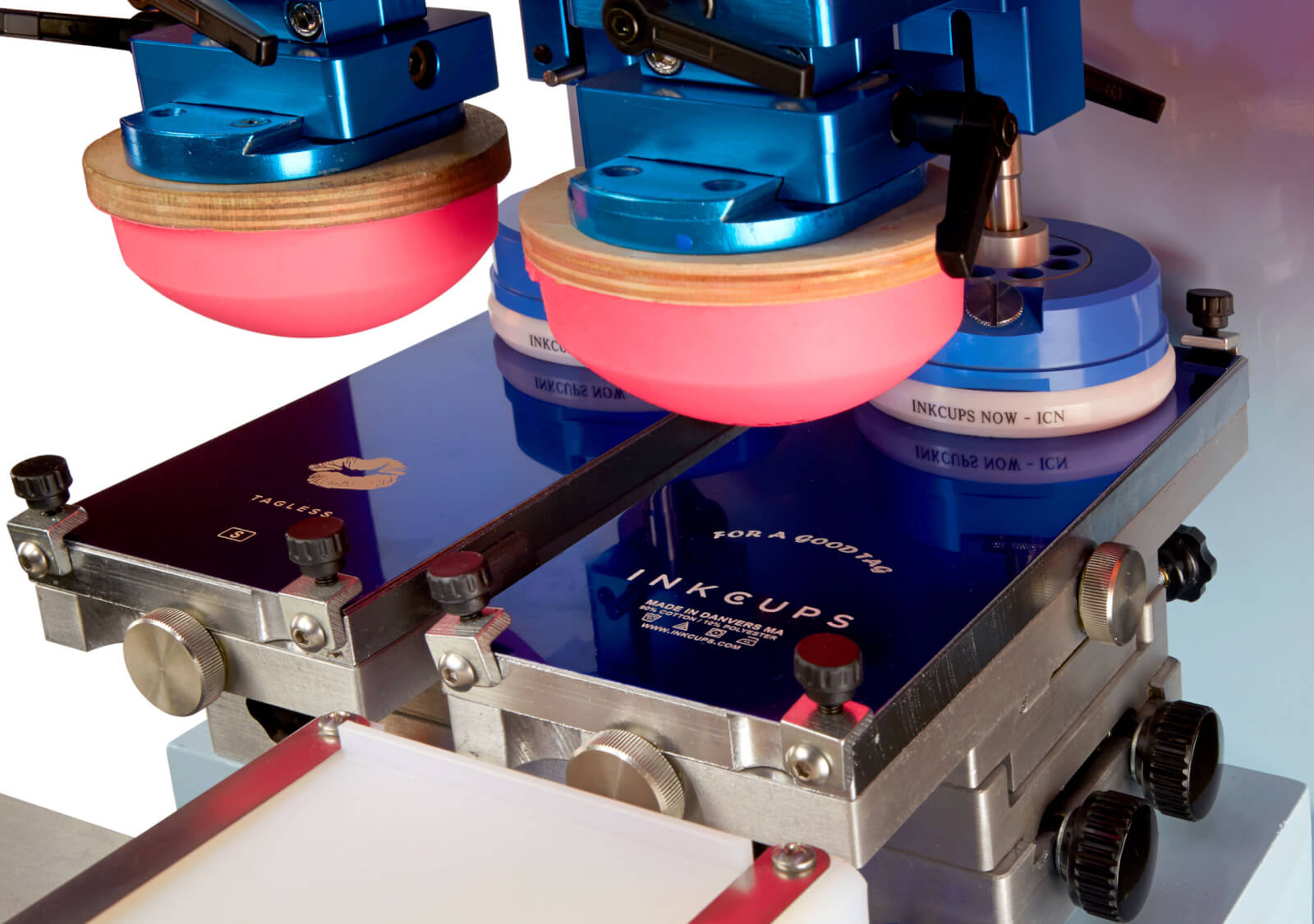

- Multi-color printing system
- Automatic feeding system
- UV curing system
- Conveyor system
- Custom fixtures for product holding
Safety Features
- Emergency stop system
- Air pressure safety control
- Overload protection
- Stable electrical control system
- Safety guards and interlock system
