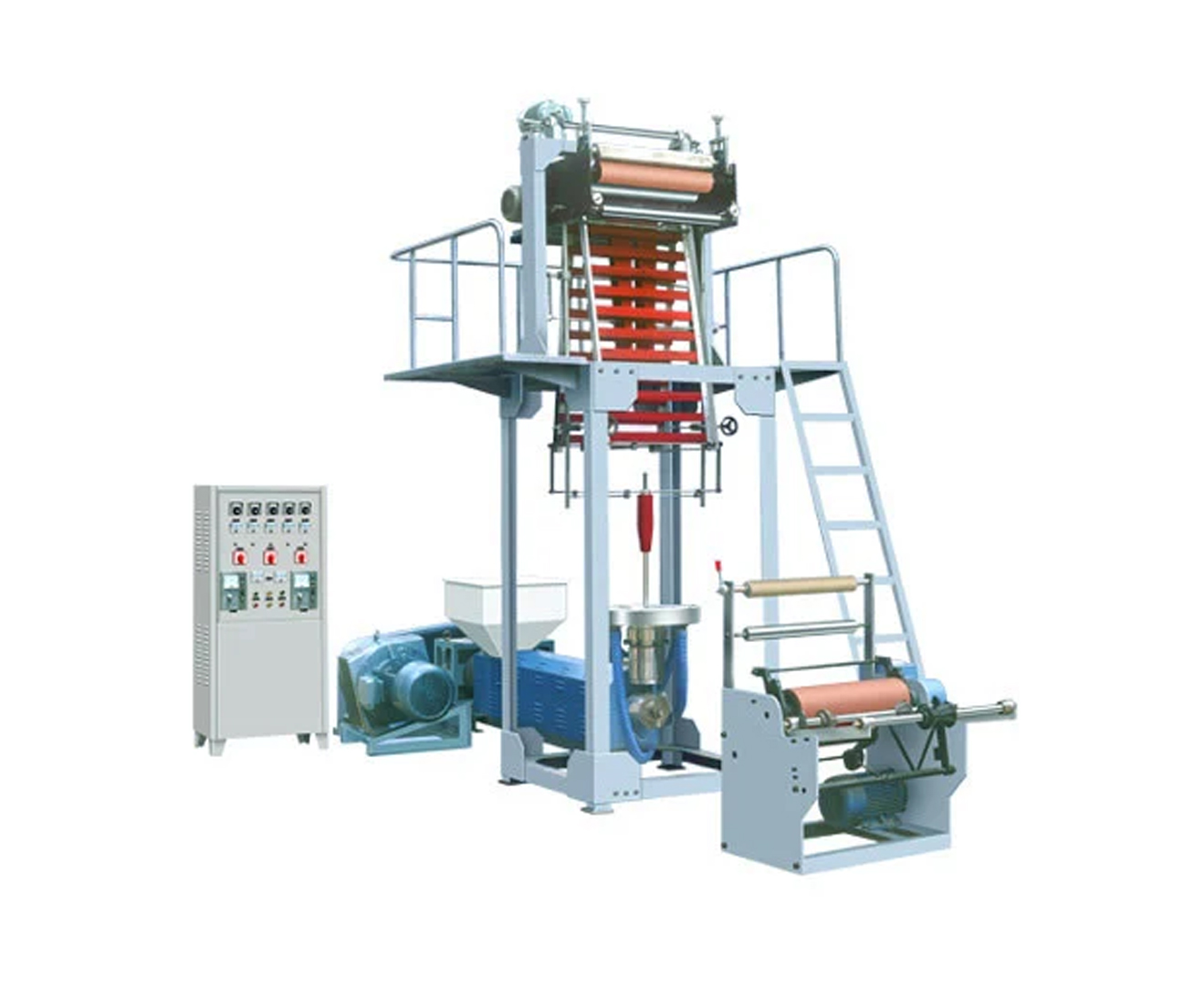

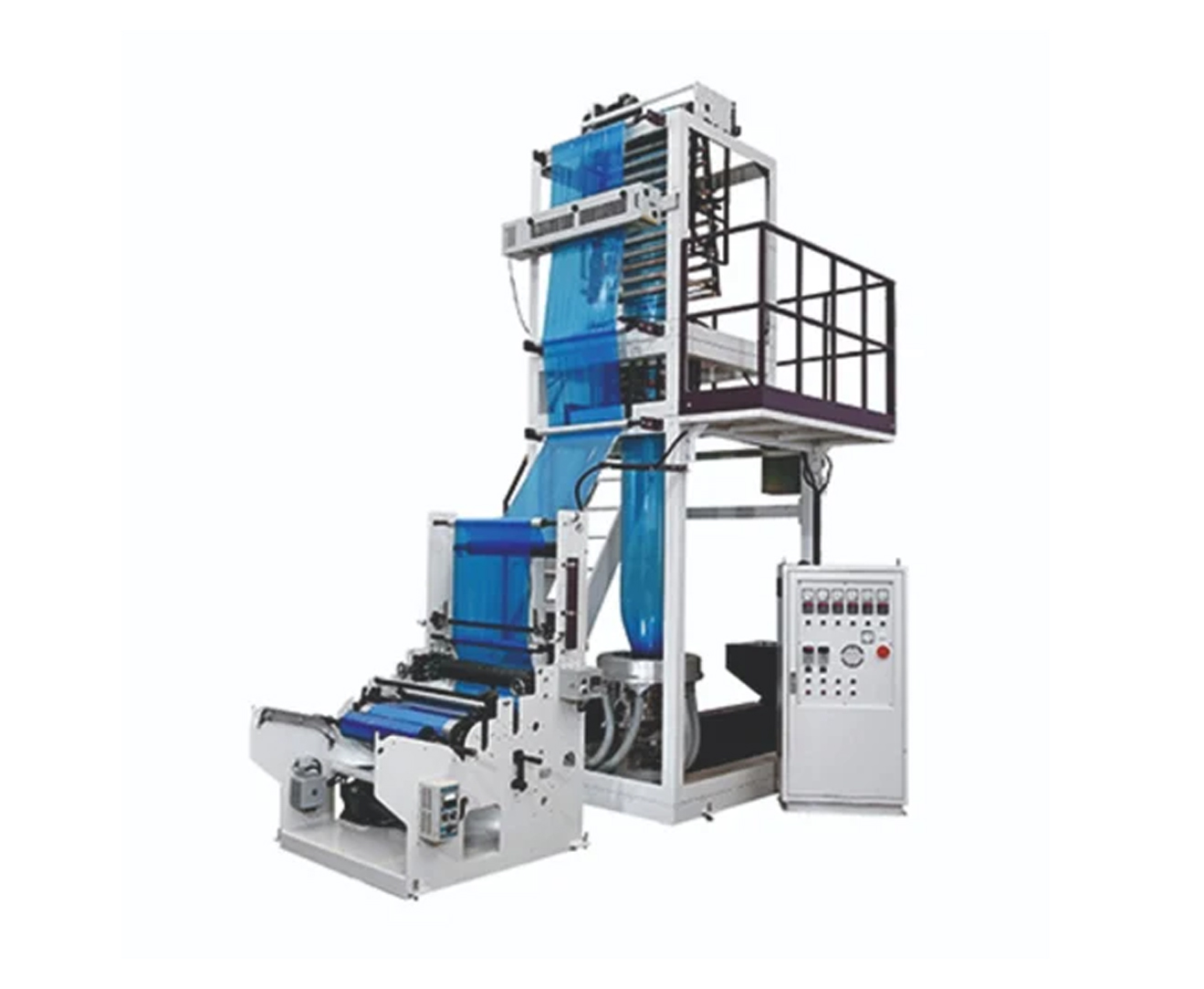

Film Blowing Machine
Machine Overview

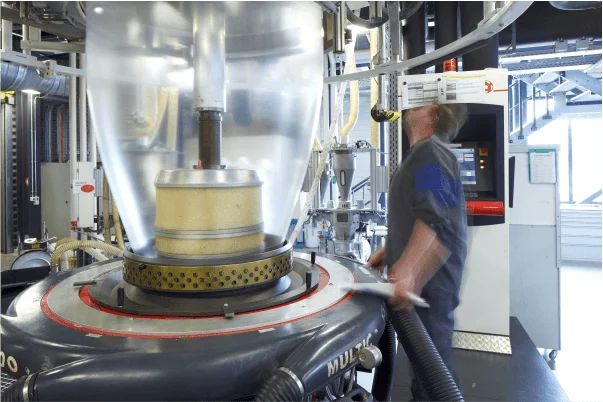

The Film Blowing Machine is an advanced plastic extrusion system designed to produce thin plastic films used in packaging, bags, agricultural covers, and industrial applications. It works by melting plastic material and forming it into a continuous tubular film using air pressure, which is then cooled and wound into rolls.
This machine is widely used in plastic manufacturing industries for producing LDPE, HDPE, and LLDPE films. Built with modern extrusion technology and precision control systems, it ensures uniform film thickness, high output efficiency, and consistent product quality.
Machine Types
- Mono Layer Film Blowing Machine
- Multi-Layer Film Blowing Machine (2 Layer / 3 Layer)
- ABA Film Blowing Machine
- Mini Film Blowing Machine
- High-Speed Automatic Film Blowing Machine
Key Features
- High output production capacity
- Uniform film thickness control
- Energy-efficient heating system
- Advanced air ring cooling system
- Stable extrusion performance
- Easy operation and maintenance
- Durable and heavy-duty construction
Technical Specifications
- Screw Diameter: 45 – 75 mm
- Film Width: 600 – 1500 mm
- Film Thickness: 0.01 – 0.10 mm
- Output Capacity: 40 – 150 kg/hour
- L/D Ratio: 28:1 – 32:1
- Material Compatibility: LDPE, HDPE, LLDPE
- Power Supply: 380V / 3 Phase
(Specifications may vary depending on model.)
Applications
- Plastic shopping bags
- Garbage bags production
- Packaging films
- Agricultural films
- Industrial plastic sheets
- Protective wrapping materials
Advantages
- Continuous high-speed production
- Consistent film quality
- Low material wastage
- Energy-efficient operation
- Suitable for various plastic materials
- Long service life
Machine Components
- Extruder unit
- Screw and barrel system
- Die head and air ring
- Bubble stabilizer
- Cooling system
- Take-up unit
- Winding unit
- Control panel
Optional Add-Ons
- Automatic thickness control system
- Rotary die head
- Double winder system
- Online printing unit integration
Safety Features
- Overheat protection system
- Motor overload protection
- Emergency stop system
- Stable electrical control system
- Safety guards and interlock system
